Overview

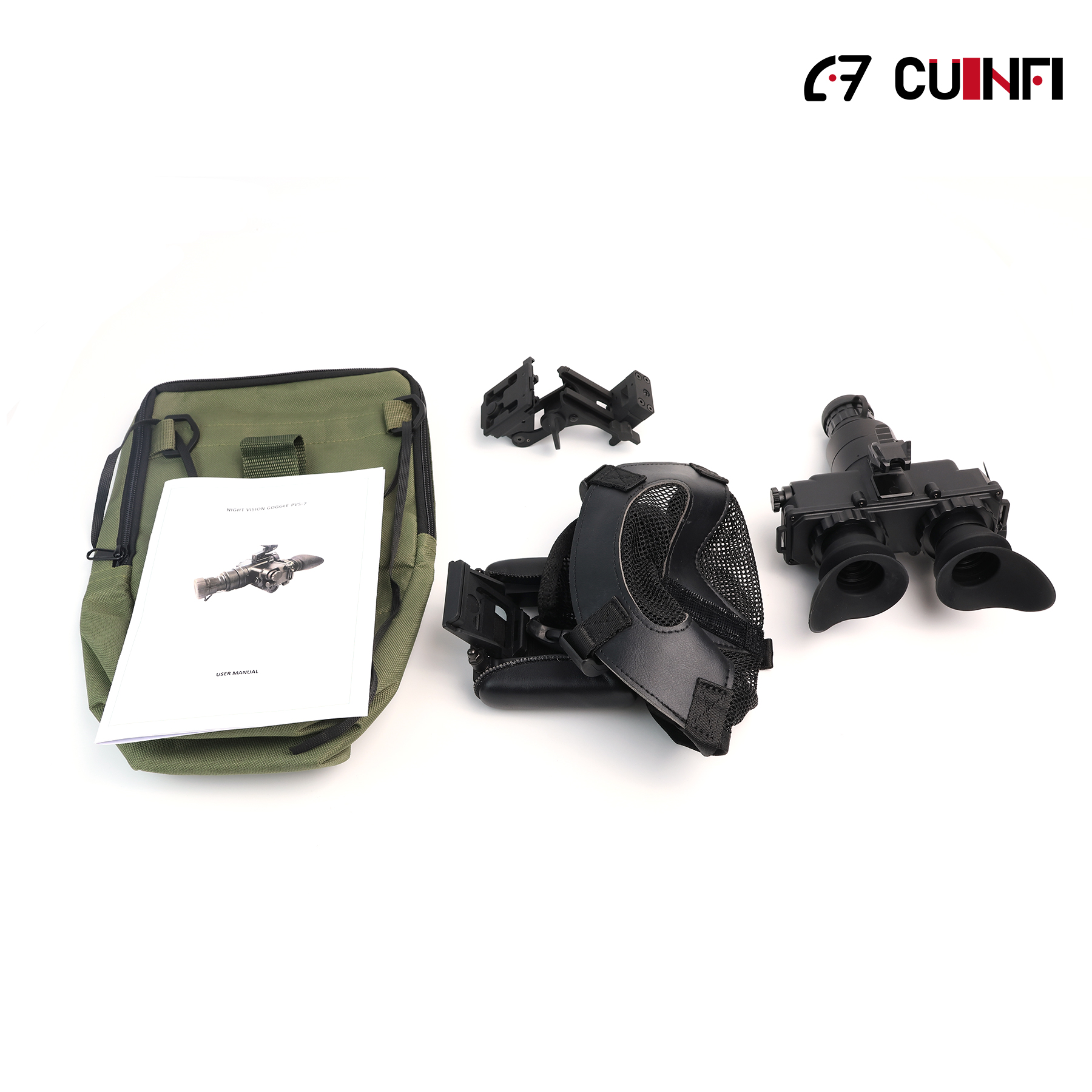

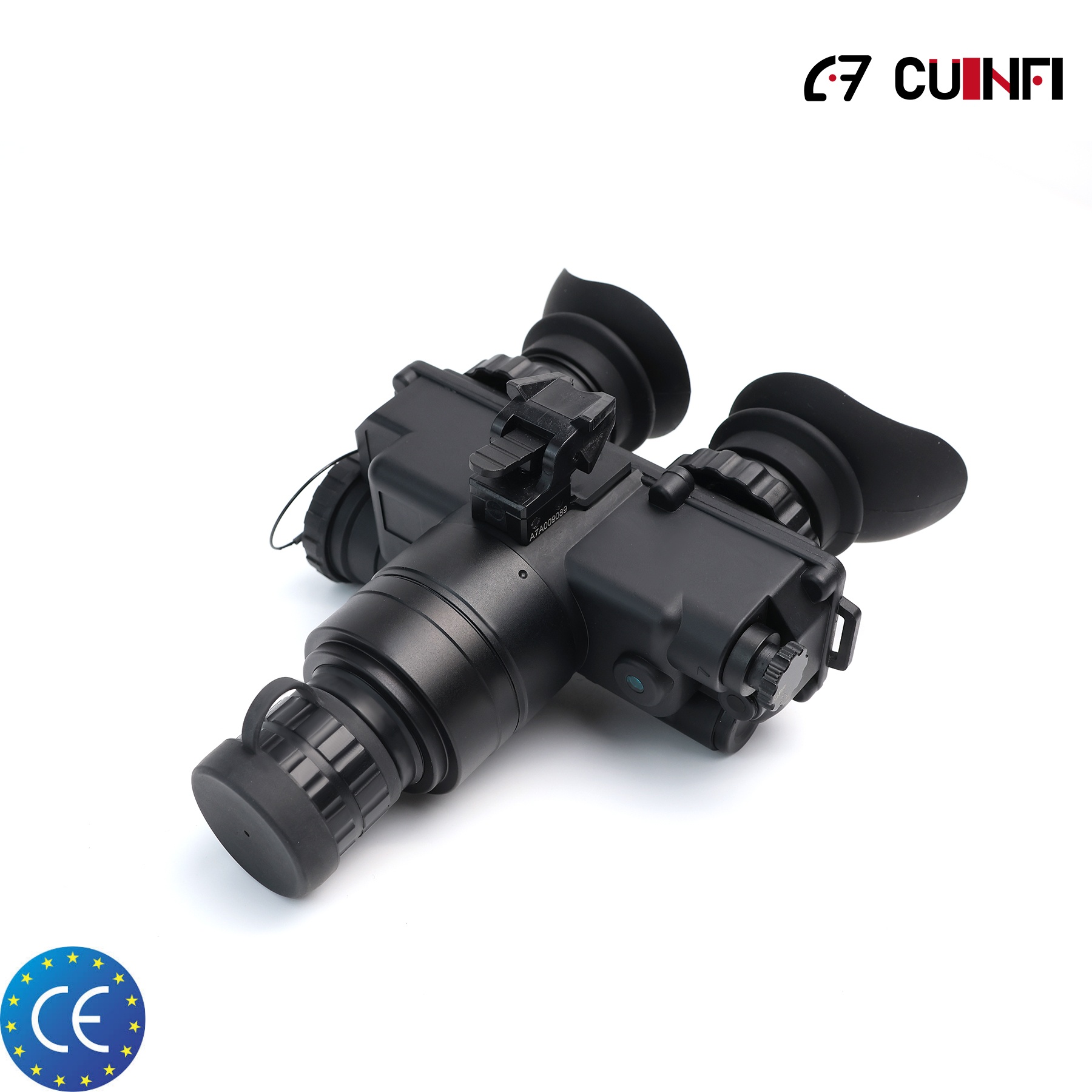

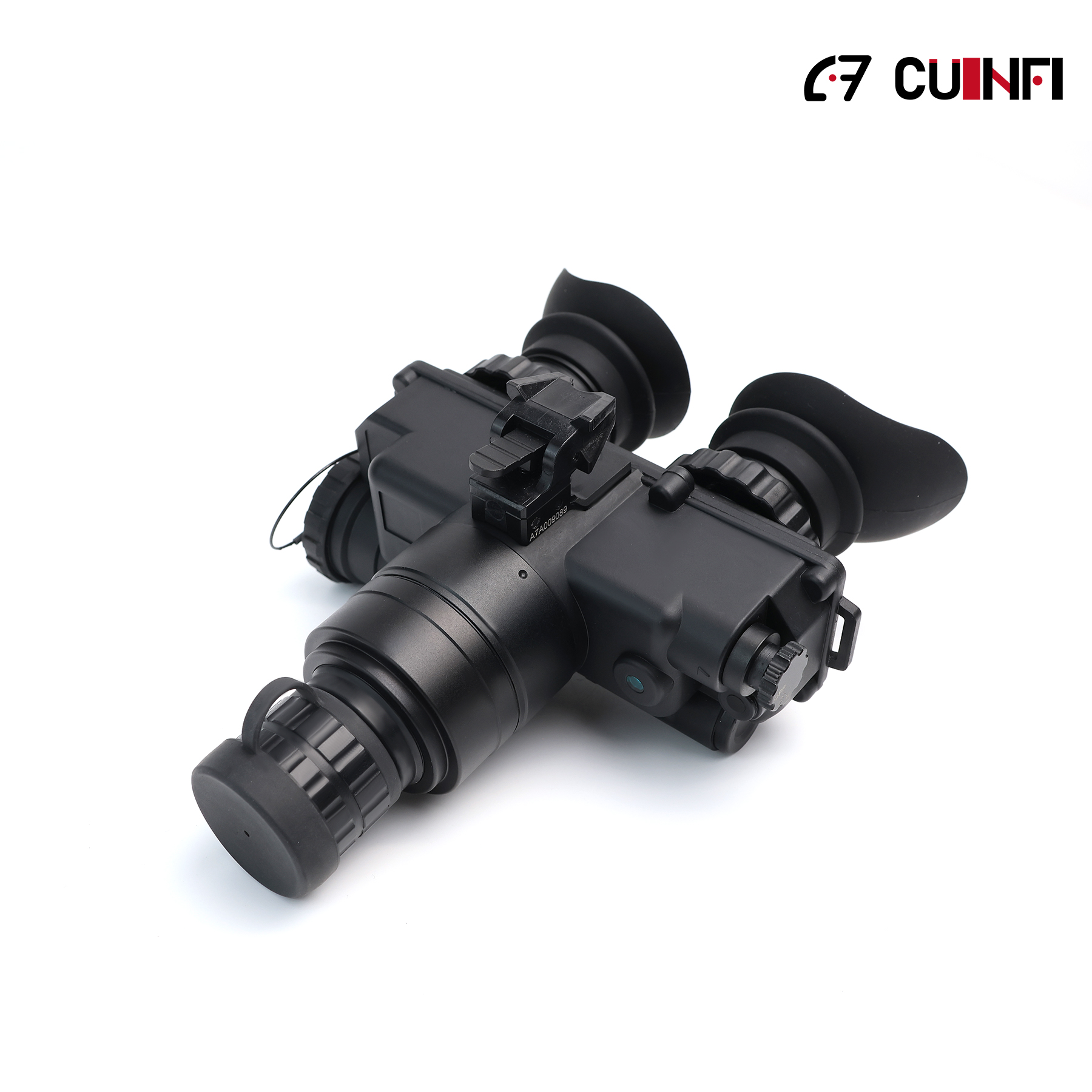

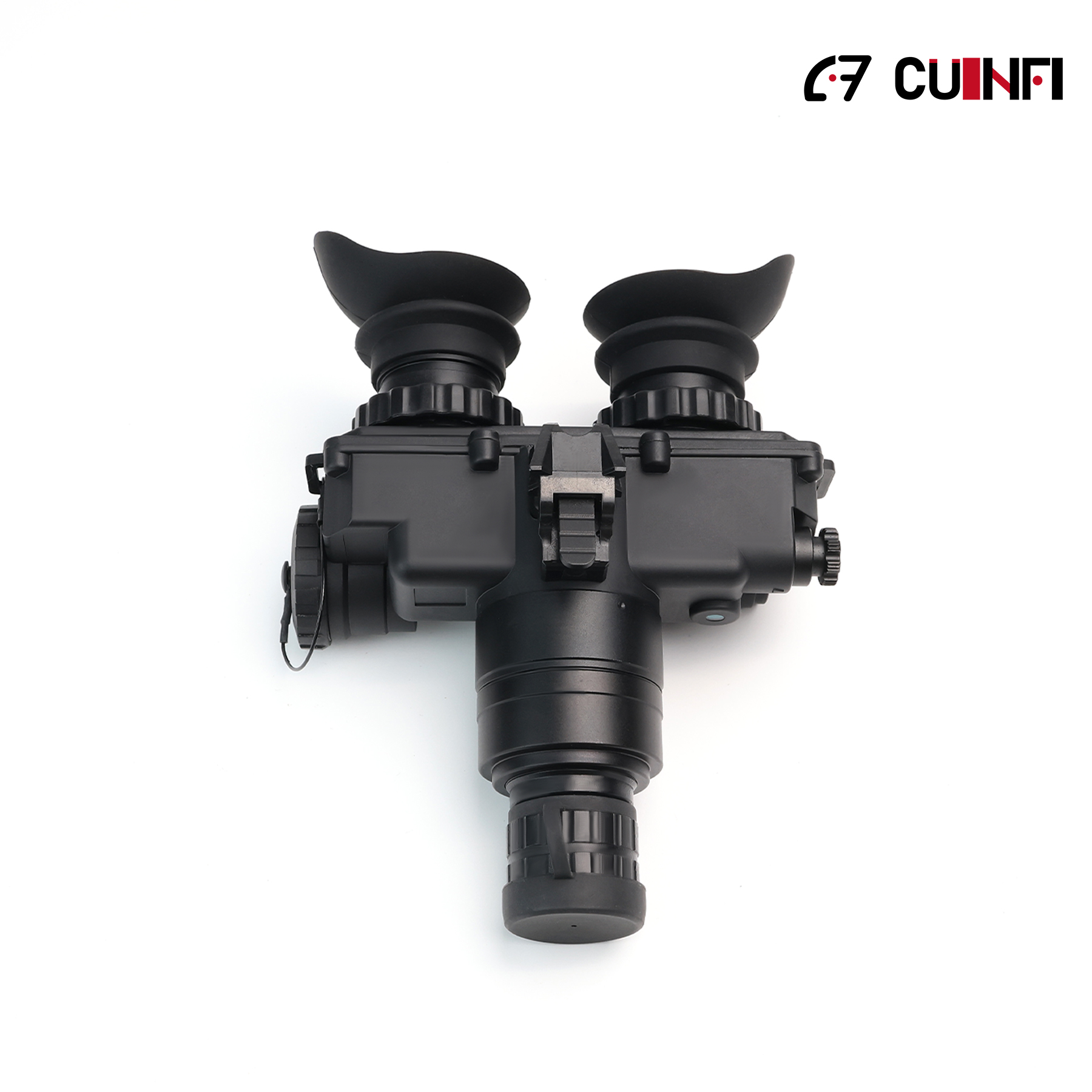

The PVS7 is a head-mounted/portable multifunctional dual-eye night vision device, primarily used for individual combat, night walking, and driving at night.
Features
• Small size, lightweight, and high resolution
• Highlight overload protection

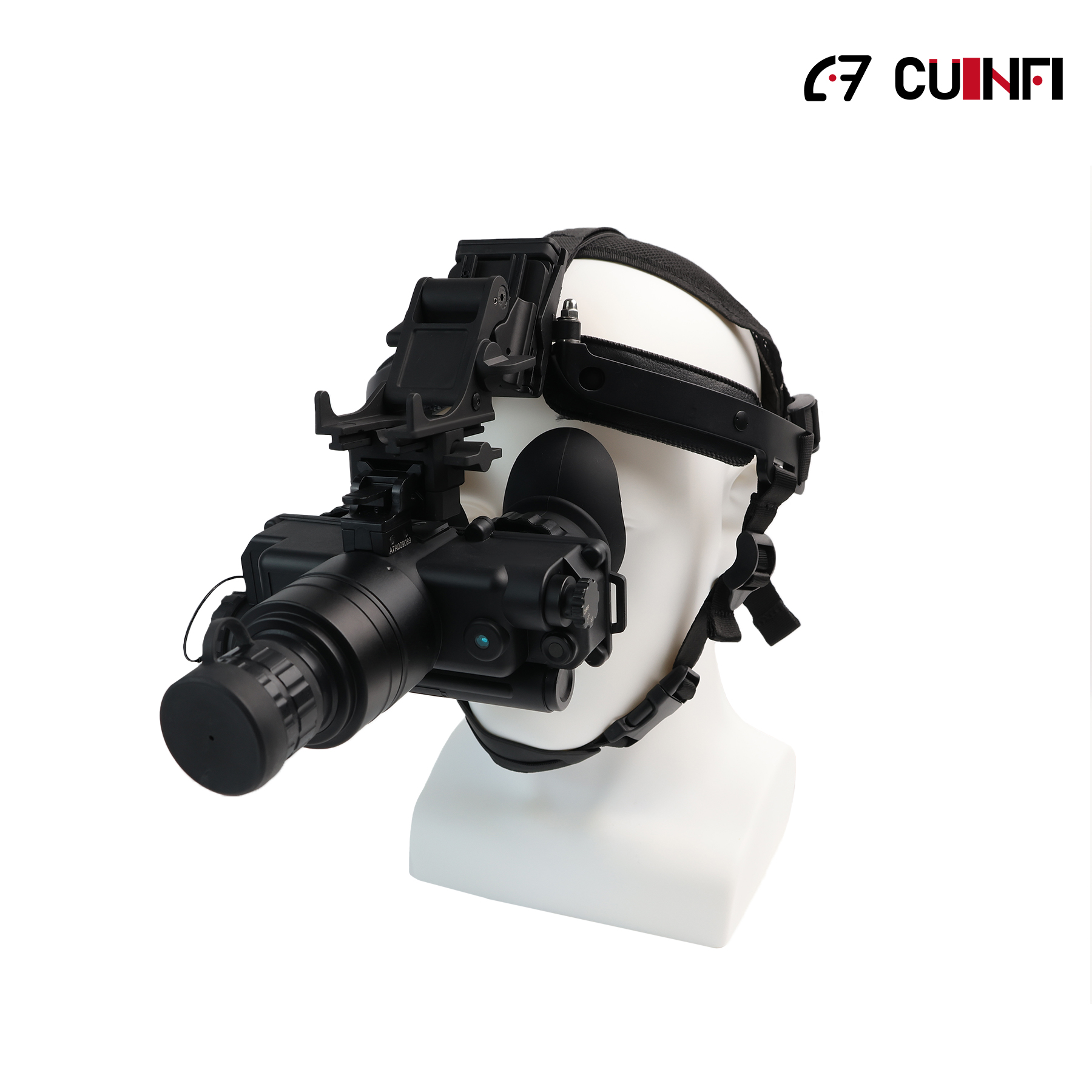

• Compatible with PASGT/ACH/MICH helmets

Specifications
Magnification | 1x |
Field of View (FOV) | 40° |
Lens System | 26.8mm F/1.2 |
Eye Relief | 15mm |
Diopter Adjustment | -5 to +5 |
Automatic Brightness Control | Yes |
Infrared Illuminator | Built-in |

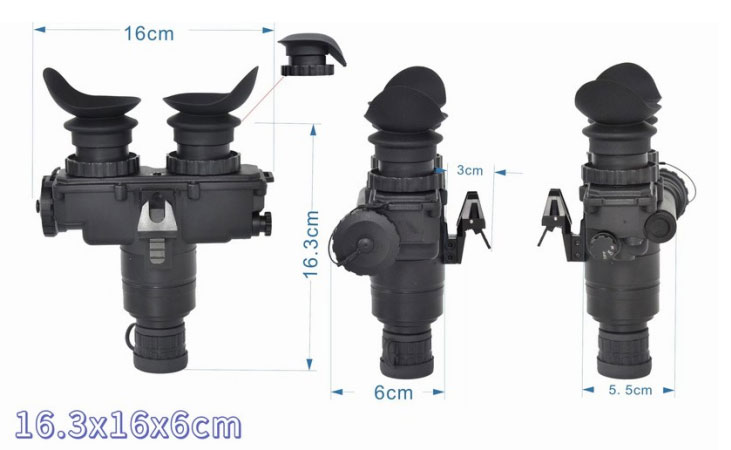

Dimensions | 160 x 160 x 75mm |
Weight | 560g |
Battery Type | Two 1.5V AA batteries |
Duration (IR Off) | 60 hours |
Duration (IR On) | 30 hours |
Image Intensifier Tube Level | Gen2+ |
Resolution | 57-64 line pairs/mm |
Supply Voltage | 2.8 ± 0.8 volts |
Focus Range | 0.25m to infinity |
Lifespan | 1000 hours |
Detection Distance (10° Lux) | 200-360m |
Recognition Distance (10° Lux) | 180-260m |
Operating Temperature | -40℃ to +55℃ |
Storage Temperature | -50℃ to +75℃ |
IP Rating | IP65-IP67 |
