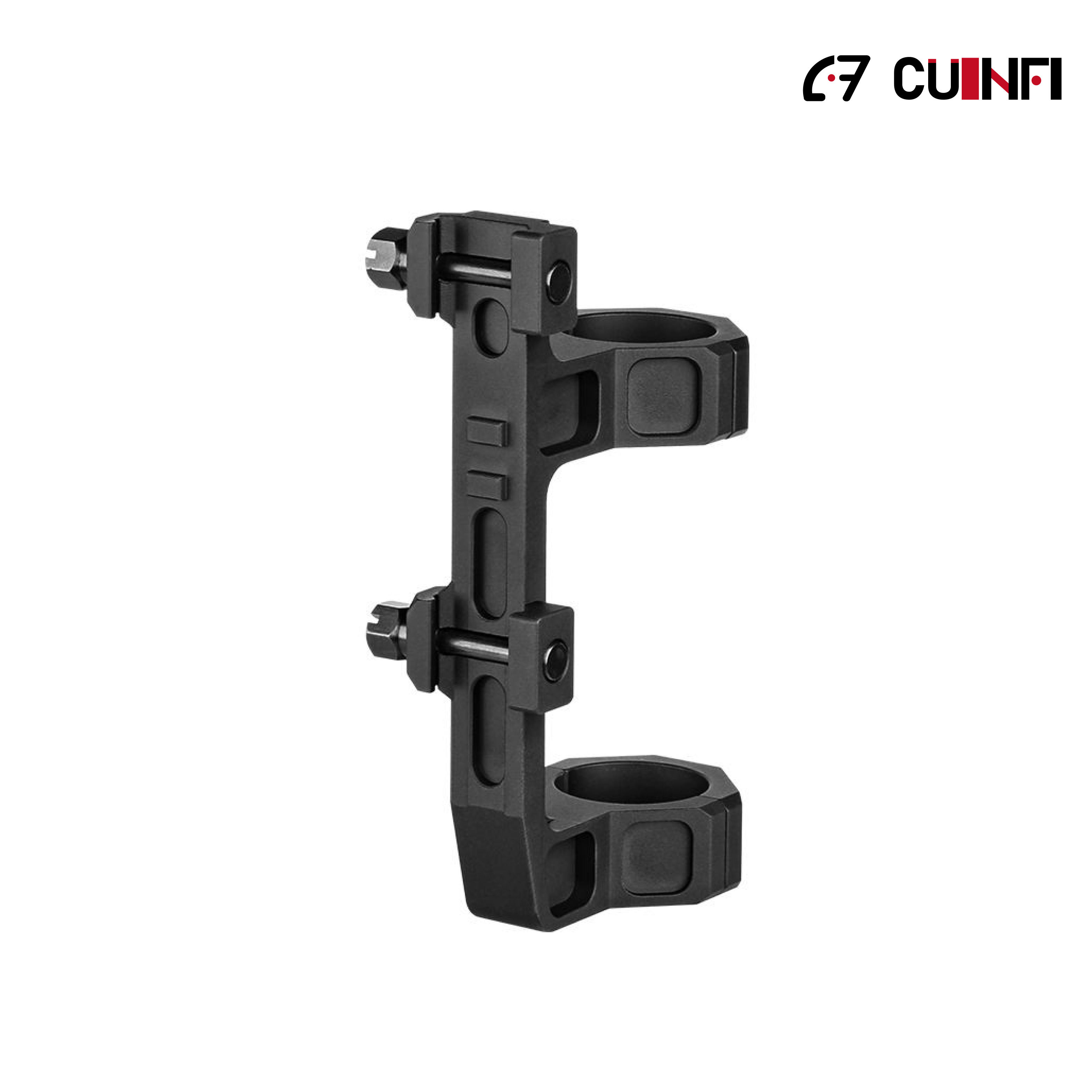

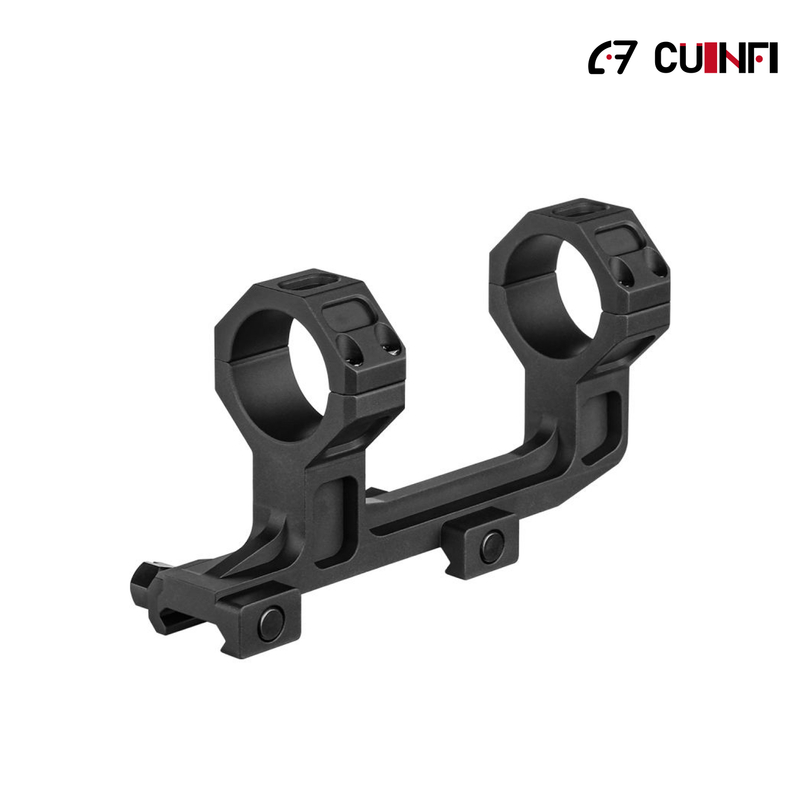

As a premier manufacturer and global supplier of high-precision shooting optics accessories, we offer this professional-grade One-Piece Tactical Optical Sight Mount designed for elite marksmen and demanding environments. This monolithic mounting system provides a superior alternative to traditional split rings, ensuring maximum structural integrity and alignment for high-recoil platforms. Engineered for the 20mm Picatinny rail standard, it serves as a critical link between the rifle and the optic, delivering a rock-solid foundation that eliminates variables in the field.
| Availability: | |
|---|---|
| Quantity: | |
As a premier manufacturer and global supplier of high-precision shooting optics accessories, we offer this professional-grade One-Piece Tactical Optical Sight Mount designed for elite marksmen and demanding environments. This monolithic mounting system provides a superior alternative to traditional split rings, ensuring maximum structural integrity and alignment for high-recoil platforms. Engineered for the 20mm Picatinny rail standard, it serves as a critical link between the rifle and the optic, delivering a rock-solid foundation that eliminates variables in the field.
Manufacturer-grade construction using high-strength 6061-T6 aluminum alloy.
Versatile dual-ring sizing with precision-engineered 25.4mm (1 inch) inserts.
Available in 0 MOA and 20 MOA configurations for long-range ballistic compensation.
Streamlined one-piece architecture for simplified installation and consistent zero retention.

The engineering philosophy behind this One-Piece Tactical Optical Sight Mount centers on the absolute elimination of movement. In the world of precision shooting, even a microscopic shift in the optic’s position can result in a significant deviation at a distance. By utilizing a single block of aerospace-grade aluminum, this mount provides a rigid backbone that resists the twisting forces and vibrations inherent in rapid-fire or high-caliber applications. The surface is treated with a professional matte black hard-coat anodization, which not only provides a non-reflective stealth finish but also creates a molecular bond that protects the metal against salt spray, humidity, and abrasive dust.
Handling this mount reveals the meticulous attention to detail during the CNC machining process. The edges are dehorned and smoothed to prevent snagging on gear or vegetation, while the clamping surface is widened to distribute pressure evenly across the rail. This prevents the "marring" or deformation of the rifle's mounting surface often seen with inferior hardware. When the heavy-duty steel bolts are torqued to specification, the mount feels like a natural extension of the receiver, providing the shooter with the tactile confidence required for split-second engagements. The interior of the rings is finished with a high-friction surface that grips the scope tube securely without the need for adhesive lapping, maintaining the pristine condition of your high-end optics while ensuring they never slip under heavy recoil.
| Technical Parameter | Specification Detail |
| Material | 6061-T6 Aircraft Grade Aluminum |
| Surface Finish | Type III Hard-Coat Anodized, Matte Black |
| Ring Diameter | 30mm (Includes 25.4mm / 1-inch Inserts) |
| Mount Type | Standard 20mm Picatinny Rail Interface |
| Center Height | 38mm / 1.5 Inches (Typical High Profile) |
| Configuration | One-Piece Monolithic Design |
| Cant Options | 0 MOA / 20 MOA (Optional) |
| Weight | Approximately 230g (Optimized for balance) |
| Locking Mechanism | Triple-Bolt Cross-Slot Clamping System |
The success of a tactical deployment often rests on the reliability of the smallest components. Our mount integrates several advanced design features that cater to the logistical and operational needs of professional users.
Adaptive Ring System: The inclusion of high-tolerance polymer or alloy inserts allows a single mount to accommodate both 30mm and 1-inch scope tubes, reducing inventory complexity for fleet management.
Zero-Return Capability: The precision-machined recoil lugs ensure that if the mount is removed and reattached to the same rail slot, the point of impact remains consistent.
Optimized Eye Relief: The cantilever-inspired design allows the optic to be positioned forward or backward to suit various stock lengths and shooters' physical builds.
Enhanced Rail Contact: Massive clamping surface area ensures that the mount stays seated even when subjected to the violent forward-and-back inertia of semi-automatic platforms.
Integrated Ballistic Compensation: The 20 MOA variant is specifically engineered for long-range shooters who need to preserve their scope's internal elevation travel for targets beyond 600 yards.
Manufacturing precision is the cornerstone of our production facility. Every One-Piece Tactical Optical Sight Mount undergoes a multi-axis CNC machining process that ensures the front and rear rings are perfectly concentric. In traditional two-piece ring sets, minor misalignments in the receiver's rail can cause the rings to "pinch" the scope tube, potentially damaging internal glass or binding the adjustment turrets.
Bored in Pairs: Our monolithic design ensures the ring centers are perfectly aligned along a single axis during the milling stage.
Tight Tolerances: We maintain a manufacturing tolerance of +/- 0.02mm, ensuring a "glove-like" fit for all standardized 30mm optics.
Stress-Free Mounting: By providing a perfectly straight cradle, the mount ensures that the optic's internal components function exactly as the manufacturer intended.
Smooth Geometry: Internal radii are designed to maximize surface contact, dispersing the clamping force around the circumference of the tube rather than at specific pressure points.
The selection of 6061-T6 aluminum is a deliberate choice for professionals who demand a specific strength-to-weight ratio. While steel mounts offer extreme durability, they add significant weight to the rifle's top line, shifting the center of gravity and increasing operator fatigue. Our aluminum alloy undergoes a specialized heat treatment to reach its peak T6 hardness, providing the rigidity of steel at nearly a third of the weight.
Hard-Coat Anodizing: Unlike standard spray-on finishes, our Type III anodization penetrates the aluminum surface, creating a shell that is nearly as hard as diamond.
Corrosion Resistance: The finish is tested against chemical solvents, oils, and environmental hazards common in field operations.
Thermal Stability: The material is chosen for its low thermal expansion coefficient, ensuring that the grip on the optic remains constant from sub-zero winter deployments to scorching desert heat.
Recoil Absorption: The alloy's grain structure is optimized to dampen the high-frequency vibrations of a gunshot, protecting sensitive electronic reticles and illuminated optics.
A scope mount is more than just a bracket; it is an ergonomic interface. This mount features a skeletonized design in non-critical areas to shave unnecessary grams without compromising the structural "bridge" between the rings. This makes the rifle more maneuverable in dynamic tactical transitions.
Low Profile Bolts: The clamping bolts are designed to be flush or recessed where possible, preventing them from catching on slings, clothing, or barricades.
Ample Bolt Clearance: The height is specifically calculated to allow for the clearance of large objective lenses (up to 56mm) while keeping the optic as close to the bore as possible for a better cheek weld.
Universal Picatinny Fit: The cross-slot bolts are sized to fit snugly into Mil-Spec 1913 rails, preventing "rail walk" during sustained fire.
Accessory Friendly: The top caps are designed with a slim profile to ensure they do not obstruct the view of secondary iron sights or top-mounted red dot offsets.
Partnering with us means gaining access to a mature supply chain focused on precision and reliability. We understand that our products are often used in mission-critical applications where failure is not an option. Our facility combines state-of-the-art Japanese machining centers with rigorous quality control protocols that inspect every unit before it leaves the warehouse.
Quality Assurance: Every batch undergoes recoil simulation testing to ensure zero-shift performance under 1000G forces.
Supply Chain Stability: As a direct manufacturer, we maintain significant raw material stocks to ensure consistent lead times and price stability for our global partners.
Customization Expertise: We offer tailored solutions for agencies or large-scale distributors, including custom heights, finishes, and laser-etched branding.
Technical Support: Our engineering team provides comprehensive documentation and torque specifications to ensure end-users achieve the best possible performance from their equipment.
A 20 MOA mount is tilted slightly forward (lower in the front). This adds 20 Minutes of Angle to your elevation travel, which is essential for long-range shooting. It allows the shooter to use the center of the scope's adjustment range for distant targets, where a 0 MOA mount might run out of upward adjustment.
Because our one-piece mounts are CNC machined from a single block of aluminum, the rings are perfectly aligned from the factory. Lapping is generally not required and is often discouraged, as it can strip the protective hard-coat anodizing and change the precision tolerances we have engineered.

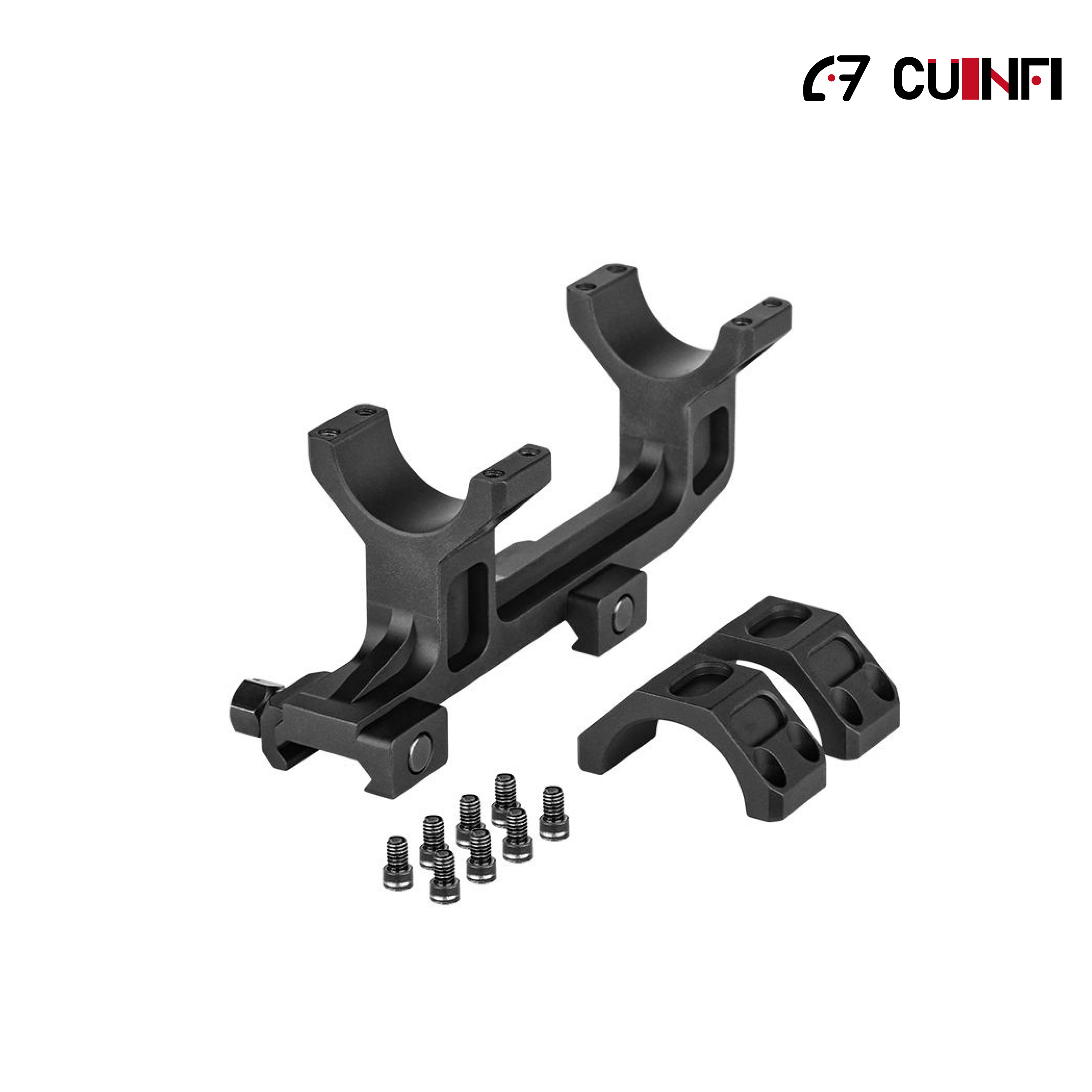

The inserts are precision-molded halves that snap into the interior of the 30mm rings. Once seated, they provide a perfect 1-inch diameter cradle. They are designed to stay in place via friction and the clamping pressure of the top caps, ensuring a secure fit for smaller tube scopes.
For the rail clamping bolts, we recommend 45-65 inch-lbs depending on the rail material. For the top ring caps, we strictly recommend 15-18 inch-lbs. Over-torquing the ring caps can crush the scope tube or strip the threads, so using a calibrated torque wrench is highly advised.
While this mount is designed for Mil-Spec Picatinny (1913) rails, it will often fit Weaver rails that have the correct slot spacing. However, because Picatinny slots are wider than Weaver slots, we recommend using a true Picatinny rail to ensure the recoil lugs seat properly and prevent any longitudinal movement.
