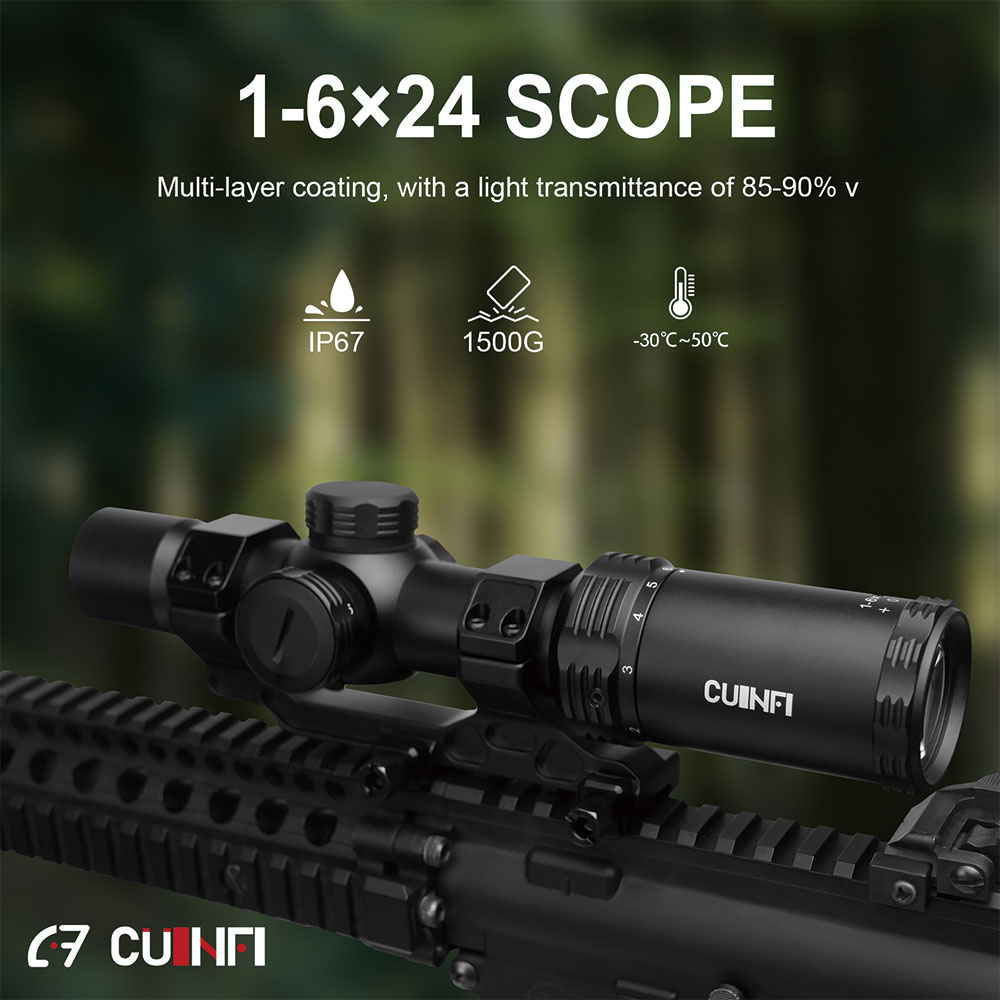

Cuinfi 1-6×24 SFP HD Glass 30MM LPVO Riflescope

Brief Introduction

The Dictator 1-6×24 LPVO Riflescope is a high-performance optical tool engineered for AR shooters and tactical enthusiasts who prioritize speed, precision, and adaptability. Built around a 30MM Tube and premium SFP HD Glass, this riflescope excels in both close-quarters engagements and extended-range targeting, delivering consistent clarity across its magnification spectrum. Equipped with a Fully Multi-Coated Lens boasting 85-90% light transmittance, it ensures bright, sharp imagery even in low-light environments. Whether you’re training at the range, participating in tactical operations, or competing in shooting sports, the Dictator 1-6×24 combines rugged reliability with intuitive controls, making it a top choice for discerning shooters seeking a versatile optic solution.

Initial Set Up

• Reticle Focal Plane (Second Focal Plane vs First Focal Plane)

All riflescope reticles can be termed either first focal plane (FFP)or second focal plane(SFP),with respect to the reticle's internal location within the erector system. An SFP reticle is visually consistent in size and weight across the magnification range; however the subtension values are only accurate on one magnification, typically the highest.In contrast,an FFP reticle will scale with magnification, and their subtensions used for ranging, holdovers, and wind corrections will remain constant. The reticle size will appear larger at higher magnifications, and smaller at low magnification.

• Second Focal Plane Reticle

These Cuinfi 1-6x24 riflescope features a second focal plane (SFP)reticle. SFP reticles are located within the riflescope near the magnification ring. This style of reticle will appear consistent throughout the entire magnification range.

Note: The cuinfi ^® 1-6x24 riflescope reticle are calibrated at the highest magnification. For the hashmark's value to be true, you need to be on the highest magnification.

• Parallax Adjustment

The cuinfi ® 1-6x24 riflescope is non-adjustable for parallax correction and is set from the factory to be parallax-free at 100 yards(90 meters). When shooting at distances other than 100 yards, using good consistent shooting form and cheek weld will prevent most problems with parallax.

• Magnification Adjustment

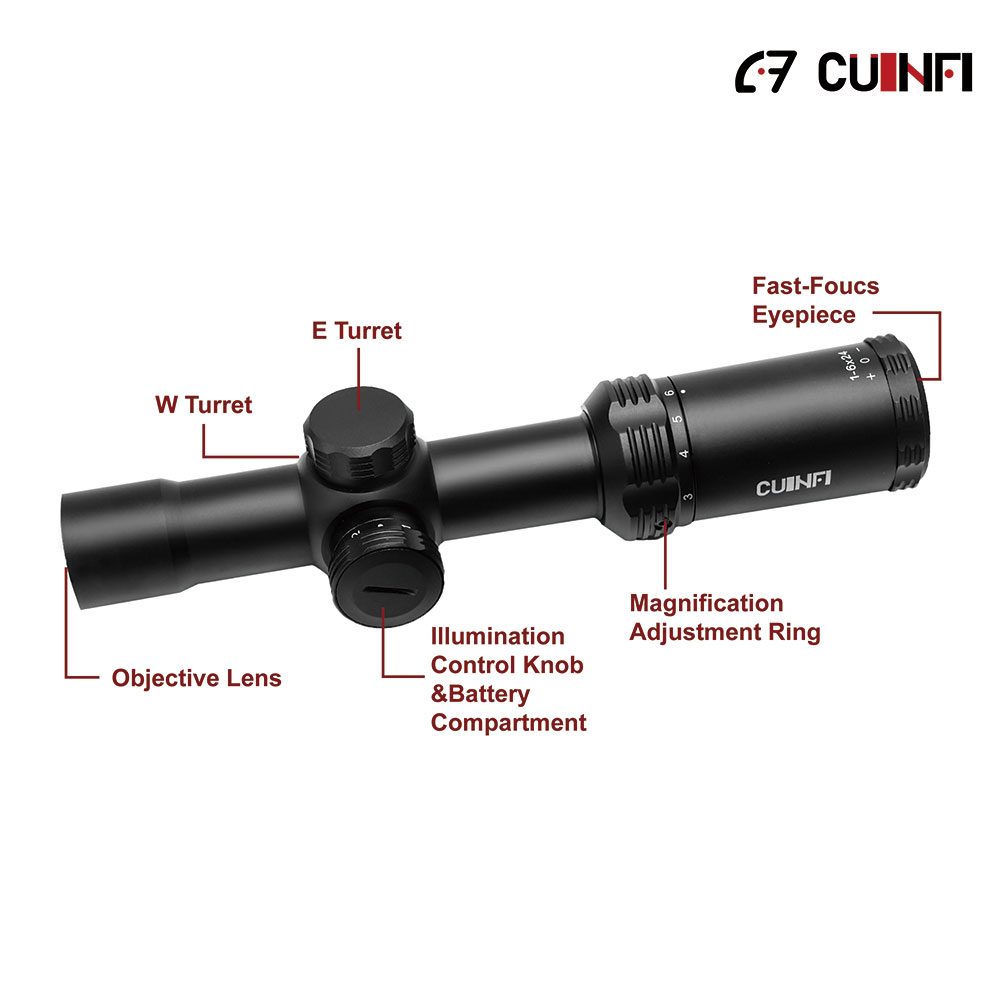

The Magnification Adjustment Ring is used to change the riflescope's "power." The Cuinfi 1-6x24 rifles copes are variable powered optics with a 1x-6x optical design. To adjust your optic's magnification, rotate the Magnification Adjustment Ring clockwise, or counterclockwise, to increase or decrease the magnification to your desired level.

• Magnification Adjustment

The ocular focus is typically a one-time adjustment used to focus the reticle for maximum sharpness. This adjustment is slightly different for every shooter. A clearly focused reticle is a critical component for accurate shooting. When setting up a riflescope, this should be the first adjustment you make and should only need to be changed from user to user, or if your eyesight changes over time.

• Ocular Focus-Fast Focus Eyepiece Adjustment

The Cuinfi^® 1-6x24 riflescope uses a Fast-Focus Eyepiece designed to easily adjust the focus on the riflescope's reticle.

WARNING: Looking directly at the sun through a riflescope, or any optical instrument,can cause severe and permanent damage to your eyesight.

• Adjusting the Reticle Focus to your Eye

1. Turn the Magnification Adjustment Ring to the highest power. Looking through the optic, turn the Fast-Focus Eyepiece counterclockwise until the reticle is slightly blurry.

2. While looking at a white wall or a clear blue sky, taking short glances through the optic, turn the Fast-Focus Eyepiece clockwise until the reticle is clear and crisp as soon as you look through the optic. This may take several attempts.

Note: You do not want your eye to focus to the reticle, rather you want the reticle in focus to your eye instantly when looking through the optic. Looking away and letting your eyes refocus is important in getting the Fast-Focus Eyepiece set correctly.

Once this adjustment is complete, it will not be necessary to refocus every time you use the rifle scope. However, because your eyesight may change over time,you should recheck this adjustment periodically.

TURRETS

The Cuinfi^® 1-6x24 riflescope is offered in Minute of Angle (MOA).

Note:The top of both the windage and elevation turret will state what unit the riflescope is laid out in.

• Minute of Angle (MOA)Adjustment

Minute of Angle is an angular unit of measurement commonly found in riflescopes. It is used to measure bullet drop, wind holdovers, and for measuring targets. Both the reticle and turrets will be laid out in specific MOA values. 1 MOA equates to 1.047"at 100 yards, 2.09"at 200 yards,3.14"at 300 yards,etc.Being an angular unit of measurement, the value of 1 MOA will increase/decrease proportionally as you increase/decrease the distance you are shooting. For this reason, think about all of your adjustments in MOA, rather than a linear unit such as inches. If your turret, reticle, and drop chart are all laid out in MOA, adjusting your riflescope for bullet drop or Wind age corrections is extremely easy.

• Elevation and Windage Turrets

Use turrets to adjust the bullet's point of impact. The Cuinfi®5-30x56 SFIRY riflescope uses a 1/10 MIL turret adjustment on both the Windage and Elevation Turrets. Each click will move the bullet's point of impact roughly. 36"at 100 yards. The turret on the top of the riflescope is the Elevation Turret, which is used to adjust the bullet's point of impact up and down. The turret on the right-hand side of the riflescope is the Windage Turret and is used to adjust the bullet's point of impact left and right.

• Capped Turrets

The Cuinfii® 1-6x24 riflescopes come equipped with capped turrets.This protects the turrets from accidental adjustment while out in the field,in transit,or in storage. You will need to remove the caps prior to making any adjustments on the turrets.

Note:The riflescope is still waterproof with the caps removed.

• To Make Turret Adjustments:

1. Remove the turret caps by spinning them counterclockwise.

2. Following the directional arrows,turn the dials in the direction you wish the bullet's point of impact to change. (If you hit high, dial down. If you hit low, dial up. If you hit right, dial left. If you hit left,dial right.)

3. When finished adjusting,replace the turret caps.

Note: The reticle will move in the opposite direction of the turret dials. When you dial up,the reticle will move down, forcing you to aim higher, changing your point of impact upward.

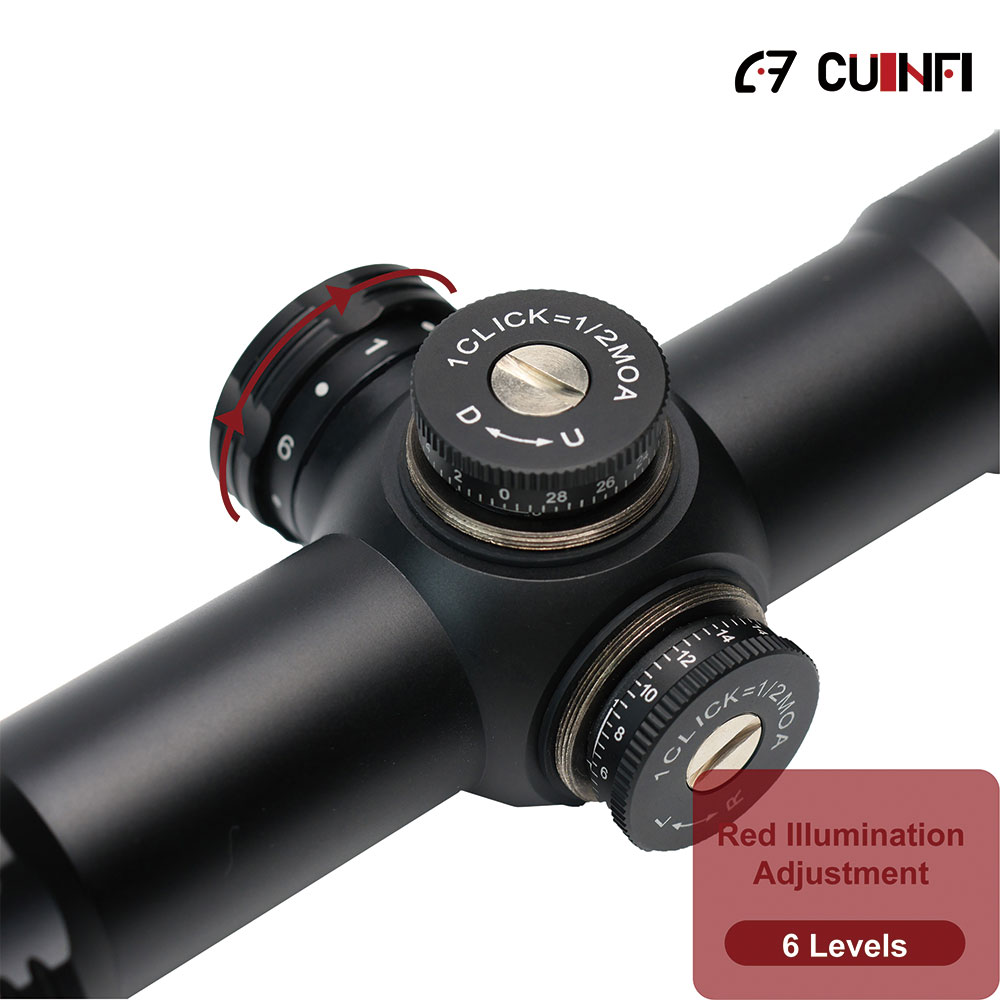

• Illumination

The Cuinfi riflescopes use a variable intensity illuminated reticle to aid in low-light performance.

To Turn Illumination On

To activate the illumination, rotate the lllumination Control Knob in a clockwise direction.

To Adjust Illumination Brightness

Once the illumination is on,continue to rotate the lllumination Control Knob clockwise to cycle through 6 levels of brightness. To decrease the brightness,rotate the lllumination Control Knob counterclockwise.

To Turn Illumination Off

To turn off the illumination,rotate the lllumination Control Knob all the way in either direction to dot.

Note: When the illumination is off,the reticle will appear black.

• Battery Installation/Replacement

To install/change the battery, unscrew the lllumination Control Knob's cap and install a new CR2032 battery with the positive side (+facing out.

• Replacing the Battery

1. Hold the Parallax Adjustment Knob and Unscrew the lllumination Control Knob cap by spinning counter-clockwise.

2. Remove the CR2032 battery.

3. Replace with a new CR2032 battery with the positive side (+facing out

4. Reinstall the battery cap by spinning clockwise until tight.

• Riflescope Mounting

To get the best performance from your Cuinfi 1-6x24 riflescope,proper mounting is essential.Although not difficult, the correct steps must be followed.If you are unsure of your abilities,it would be best to use the services of a qualified gunsmith.

• Rings and Bases

The Cuinfi®1-6x24 riflescope feature a 30 mm main tube. Be sure to select a base and matching rings appropriate for your riflescope's mount according to manufacturer's instructions.

Tip:Selecting the proper ring height to provide appropriate clearance between the riflescope and any part of the rifle is paramount.The proper height will also allow for a comfortable head position and aid in establishing a solid and consistent shooting position.A ring's height will not have an adverse effect on accuracy and overall range or performance.

• Eye Relief and Reticle Adjustment

After installing the bottom ring halves on the mounting base,place the riflescope on the bottom ring halves and loosely install the upper ring halves.Before tightening the riflescope ring screws,adjust for maximum eye relief to avoid injury.

1. Set the riflescope to its highest magnification.

2. Move the riflescope fore and aft in the rings until you achieve a full,unobstructed sight picture.

3. Without disturbing the fore-aft placement,rotate the riflescope until the reticle is level.Use a leveling tool(s) such as feeler gauges or bubble levels and a plumb bob to aid in this process.

4. After leveling the reticle,tighten and torque the ring screws down per manufacturer's instructions.Use caution and do not over-tighten ring screws.

Key Features

Optical Performance

1-6x Variable Magnification: Seamlessly transitions from 1x for rapid point-blank targeting to 6x for precision long-range shots, adapting to dynamic shooting scenarios.

SFP HD Glass Reticle: The second focal plane reticle maintains a consistent size across all magnifications, calibrated for accuracy at maximum power (6x) to ensure reliable holdovers and wind corrections.

Fully Multi-Coated Lens: Minimizes light reflection and maximizes transmittance (85-90%), enhancing visibility in bright sunlight, overcast conditions, or dim environments.

85-95mm Eye Relief: Provides a comfortable viewing distance, preventing recoil-related eye injury and ensuring a full, unobstructed sight picture.

Control & Adjustment

Fast-Focus Eyepiece: Enables quick reticle focusing for instant clarity, critical for rapid target acquisition in high-pressure situations.

Red Illumination Reticle: Features 6 adjustable brightness levels, improving reticle visibility in low-light or high-contrast environments without washing out target details.

0-Reset Turret Function: Allows easy zero reset after adjustments, ensuring consistent accuracy during extended shooting sessions.

1/2 MOA Click Value: Offers precise elevation and windage adjustments (80 MOA each), facilitating fine-tuning of bullet impact for long-range precision.

Durability & Protection

IP67 Waterproof & Dustproof Rating: Withstands harsh conditions, including water immersion and dust intrusion, while operating reliably in temperatures from -30℃ to 50℃.

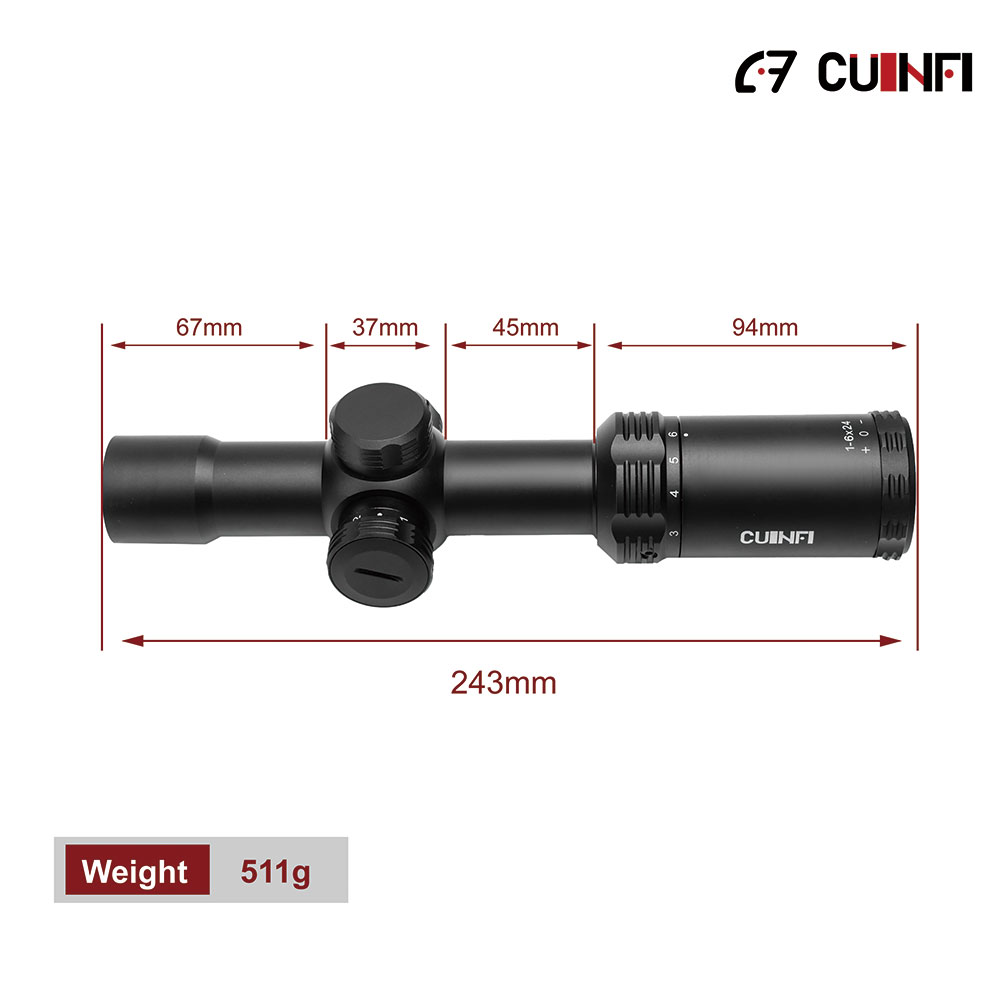

Aircraft Grade Aluminium Construction: Delivers rugged durability without excessive weight (511g), balancing sturdiness and portability for tactical use.

Design & Materials

Crafted for tactical performance, the Dictator 30MM Tube Riflescope features a robust Aircraft Grade Aluminium tube that resists corrosion and impact. The Black Matte Hard Anodized finish provides a stealthy, non-reflective surface, ideal for tactical operations where discretion is key. Its 30mm tube diameter enhances structural stability and allows for precise adjustments, while the compact 243mm length ensures compatibility with most AR platforms. The Capped Turrets protect against accidental adjustments during transit or field use, and the riflescope remains waterproof even when caps are removed. The Objective Lens (24mm) works in tandem with the multi-coated optics to gather ample light, ensuring clear views in challenging lighting.

Application Scenarios

Tactical Training: The 1-6x magnification range and fast-focus eyepiece make it perfect for close-quarters combat drills and dynamic tactical exercises.

Range Shooting: Precise MOA adjustments and HD glass reticle ensure consistent accuracy for target practice and competitive shooting events.

Home Defense: 1x magnification enables rapid target acquisition in tight spaces, while red illumination aids visibility in low-light home environments.

Extended Range Engagements: At 6x magnification, it excels at targeting beyond 100 yards, leveraging the SFP reticle’s calibrated hashmarks for bullet drop compensation.

FAQ

What battery is required for the red illumination feature?

The red illumination uses a CR2032 battery (not included) with the positive (+) side facing outward during installation for optimal performance.

Is the reticle accurate at all magnification levels?

The SFP reticle is calibrated at the highest magnification (6x). For precise holdover and wind correction values, always use the riflescope at 6x.

Can this riflescope be mounted on any AR rifle?

Yes, it requires compatible 30MM ring mounts (sold separately). Choose the appropriate ring height to ensure proper clearance between the scope and rifle.
