This 6-850 Yards LCD Golf Rangefinder represents a pinnacle of optical engineering from a specialized manufacturer dedicated to precision instrumentation. As a primary supplier of high-performance distance meters, we provide a solution that balances rapid target acquisition with consistent accuracy, specifically designed to meet the rigorous demands of commercial recreational environments and professional distribution. This device integrates multi-layered optics with an intuitive LCD interface, ensuring that every measurement is delivered with absolute clarity and reliability for end-users seeking a competitive edge on the course.
The pursuit of the perfect shot begins with an unwavering confidence in the distance to the pin. This rangefinder is crafted to eliminate the guesswork inherent in complex landscapes, providing a tactile and visual experience that reassures the user at every click. When holding the device, the premium rubberized housing offers a secure, non-slip grip that feels substantial yet lightweight, reflecting the meticulous manufacturing standards applied during assembly. The buttons provide a definitive, crisp feedback, ensuring operation is seamless even when wearing gloves or navigating humid conditions.

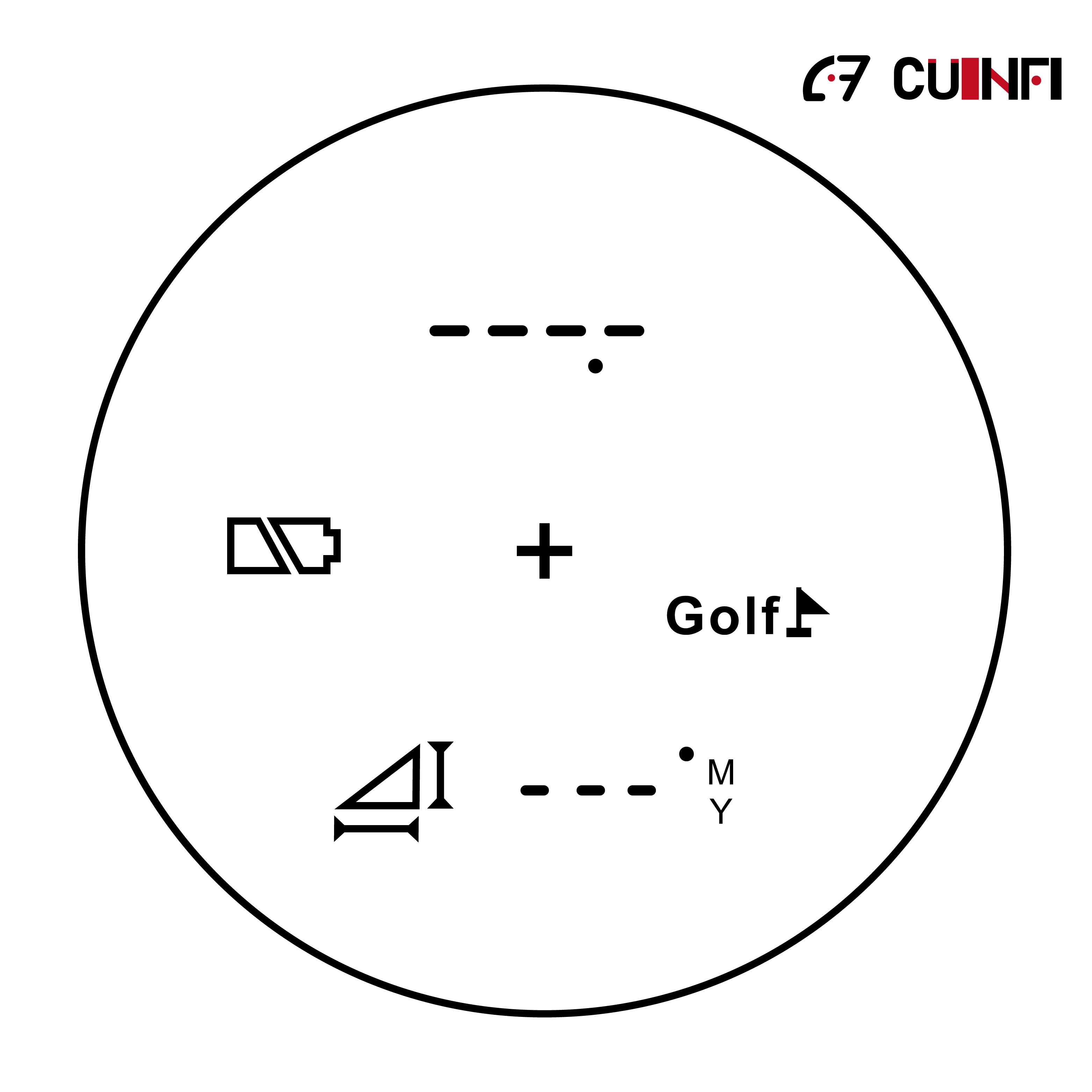

Peering through the multi-coated 6x magnification lens, the world appears vibrant and sharp, with chromatic aberration virtually eliminated. The internal LCD display overlays data with high contrast, making it easy to read against various backgrounds, from lush fairways to deep bunkers. This isn't just about measuring distance; it is about the silence of the woods, the focus of the golfer, and the precision of a tool that acts as an extension of the athlete’s own vision. By delivering near-instantaneous feedback, the device facilitates a faster pace of play and more informed club selection, directly impacting the quality of the game.
| Feature | Technical Data |
| Measurement Range | 6 - 850 Yards |
| Magnification | 6X |
| Objective Lens Diameter | 24mm |
| Measurement Accuracy | ± 1 Yard |
| Display Type | Internal LCD |
| Focus Method | Eyepiece Manual Focus |
| Measuring Units | Yards / Meters (Switchable) |
| Battery Type | CR2 (3V) or Lithium Rechargeable |
| Field of View | 7 Degrees |
| Laser Wavelength | 905nm (Class 1 Eye Safe) |
| Weight | 185g (approx. without battery) |
| Dimensions | 104 x 72 x 41 mm |
Precision Target Lock Technology: The advanced software algorithm prioritizes the nearest object, ensuring the laser locks onto the flagstick rather than the trees or hills in the background.
Adaptive Slope Compensation: Integrated sensors calculate the uphill or downhill angle, providing an "adjusted" play distance that accounts for elevation changes on complex courses.
High-Speed Processing Engine: Equipped with a proprietary chipset that delivers distance readings in under 0.5 seconds, minimizing wait times and maximizing efficiency.
Ruggedized Weather Resistance: Engineered to withstand the unpredictable nature of outdoor use, the housing is sealed to resist dust, moisture, and light rain.
Optimized Battery Management: High-efficiency circuitry ensures hundreds of measurements on a single charge or battery cycle, reducing the frequency of maintenance.
The soul of a high-end rangefinder lies in its glass. As an experienced manufacturer, we utilize ultra-low dispersion lenses that undergo a rigorous multi-coating process. This technical approach is critical for professional-grade optics.
Multi-Layered Green Coating: Enhances light transmission to over 90%, providing a bright image even in low-light conditions like early morning or late evening rounds.
Diopter Adjustment: The adjustable eyepiece allows users with varying eyesight—including those who wear glasses—to achieve a perfectly sharp focus on both the target and the LCD data.
6X Magnification Efficiency: Carefully balanced to provide enough zoom to identify distant pins without the excessive "image shake" common in higher magnification handheld devices.
Eye-Safe Laser Emission: Utilizing Class 1 laser technology ensures that the device is safe for frequent use while maintaining the power necessary for 850-yard ranging.
A professional rangefinder must adapt to the specific needs of the golfer. This model features multiple operational modes that can be toggled effortlessly, providing a versatile toolset for any scenario.
Flagpole Scanning Mode: Allows the user to pan across the horizon while the device continuously updates the distance, vibrating or locking when it detects the pin.
Direct Distance Mode: Ideal for simple topographical measurements where elevation is not a factor or for use in sanctioned tournaments where slope data might be restricted.
Angle/Height Measurement: Beyond golf, the internal clinometer provides accurate angle readings, making it a valuable tool for architectural surveying and site planning.
Metric and Imperial Switching: With a simple long-press, the device toggles between Yards and Meters, catering to international users and diverse regional standards.
Durability is a non-negotiable requirement for equipment used in professional environments. Our engineering team has focused on a form factor that is as resilient as it is comfortable.
Streamlined Form Factor: The vertical orientation and contoured body are designed to fit naturally in the palm of the hand, reducing fatigue during extended use.
Anti-Slip Texture: The exterior features a specialized polymer coating that provides a high-friction surface, ensuring the device remains secure even in sweaty or rainy conditions.
Compact Portability: Measuring just over 10 centimeters in length, it fits easily into a standard pocket or a specialized carrying case attached to a golf bag.
Impact-Resistant Internal Chassis: The internal optical bench is shock-mounted to protect the delicate alignment of the laser and lenses from accidental drops or rough handling.
Choosing the right supplier for optical equipment requires a partner who understands the intersection of technology and field application. We bring years of manufacturing expertise to every unit produced.
Rigorous Quality Control: Every unit undergoes a multi-stage calibration process to ensure that the ±1-yard accuracy is maintained across the entire 850-yard spectrum.
Specialized Engineering Team: Our R&D department focuses exclusively on laser applications and optical clarity, ensuring we stay at the forefront of ranging technology.
Comprehensive Lifecycle Support: We stand behind our products with technical documentation and professional guidance to ensure long-term operational success for our partners.
Consistency in Production: Our manufacturing facilities utilize automated alignment systems to ensure that the 1,000th unit is as precise as the first.
The device utilizes a "first target priority" logic. When the laser scans a scene, the processor analyzes multiple return signals and selects the one with the shortest distance that matches the profile of a flagpole, effectively filtering out larger, more distant objects like trees or buildings.
While slope compensation is an invaluable training and recreational tool, many professional tournament rules require it to be disabled. Our rangefinder is designed to be used as a high-precision tool, and users should verify the specific local rules of their competition regarding electronic measurement devices.
The LCD is engineered for high-durability outdoor use, featuring a wide operating temperature range. Under normal conditions and proper storage, the display is rated for tens of thousands of hours of active use without fading or loss of contrast.
Yes. While optimized for golf with features like flagpole locking, the 850-yard range and high-speed linear measurement make it highly effective for hunting, forestry, and general industrial distance checking where a handheld, accurate meter is required.
Maintenance is minimal. We recommend keeping the objective and eyepiece lenses clean using a microfiber cloth to prevent dust buildup that could scatter the laser. Additionally, ensuring the battery compartment remains dry and using high-quality CR2 cells will maintain the consistency of the electronic pulses.
