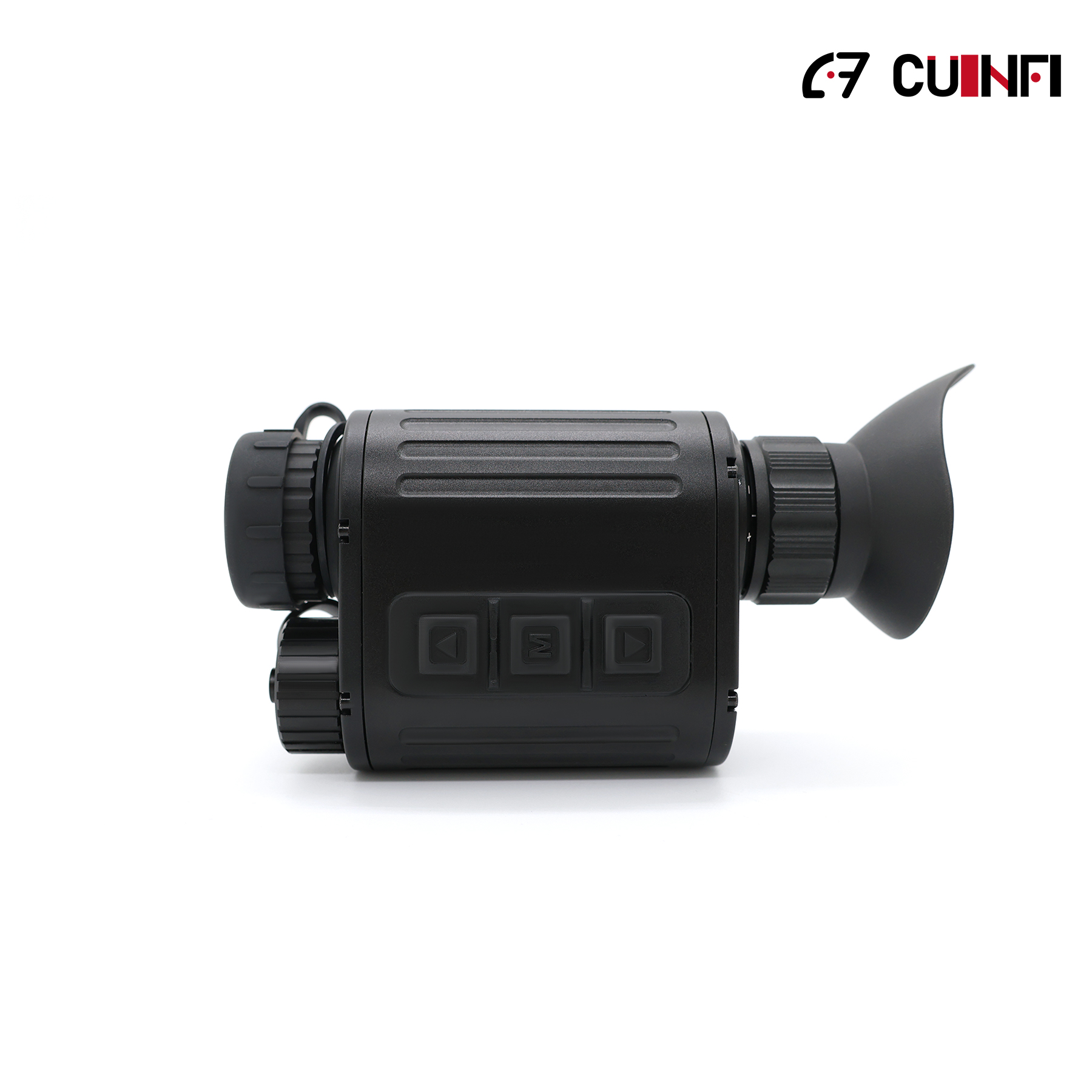

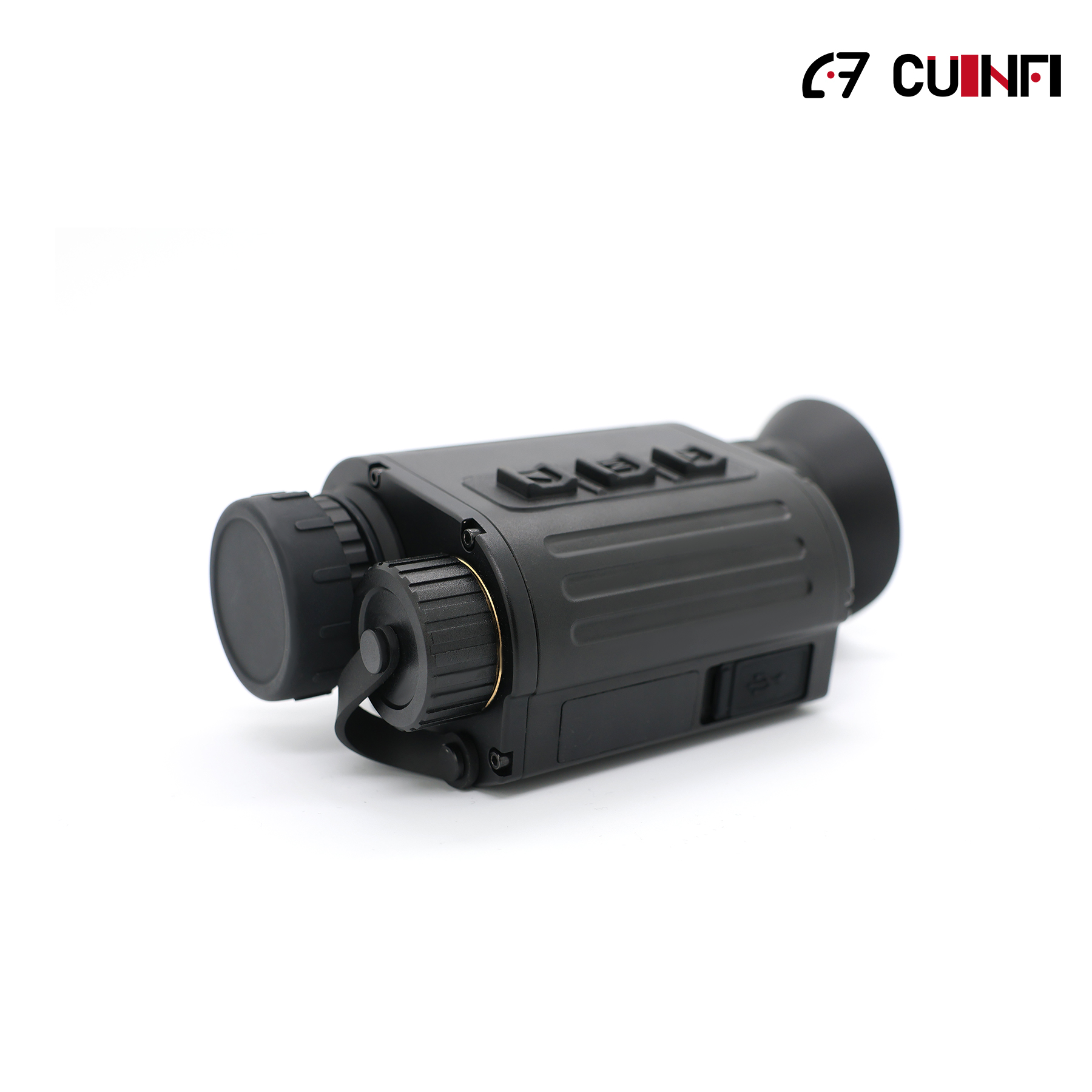

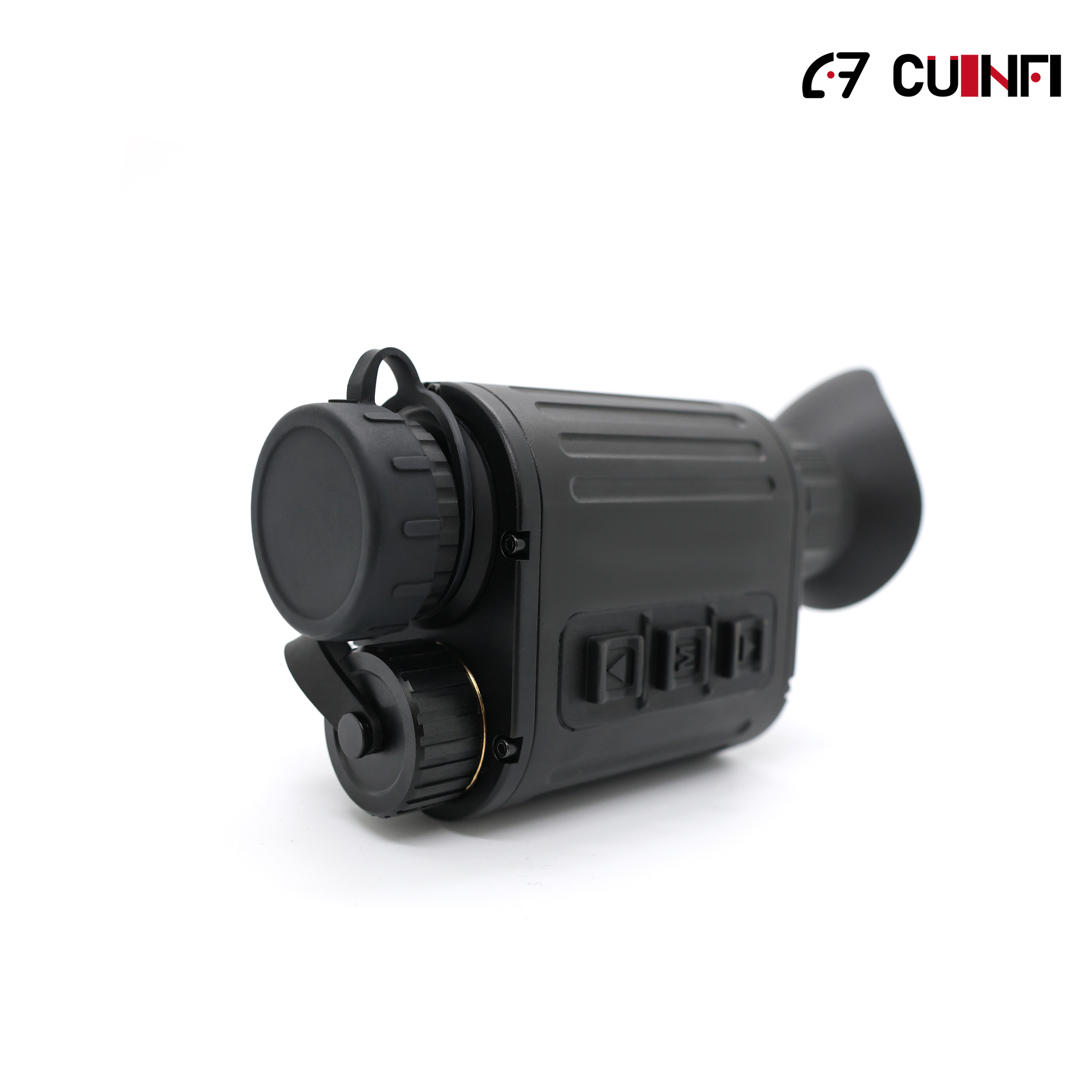

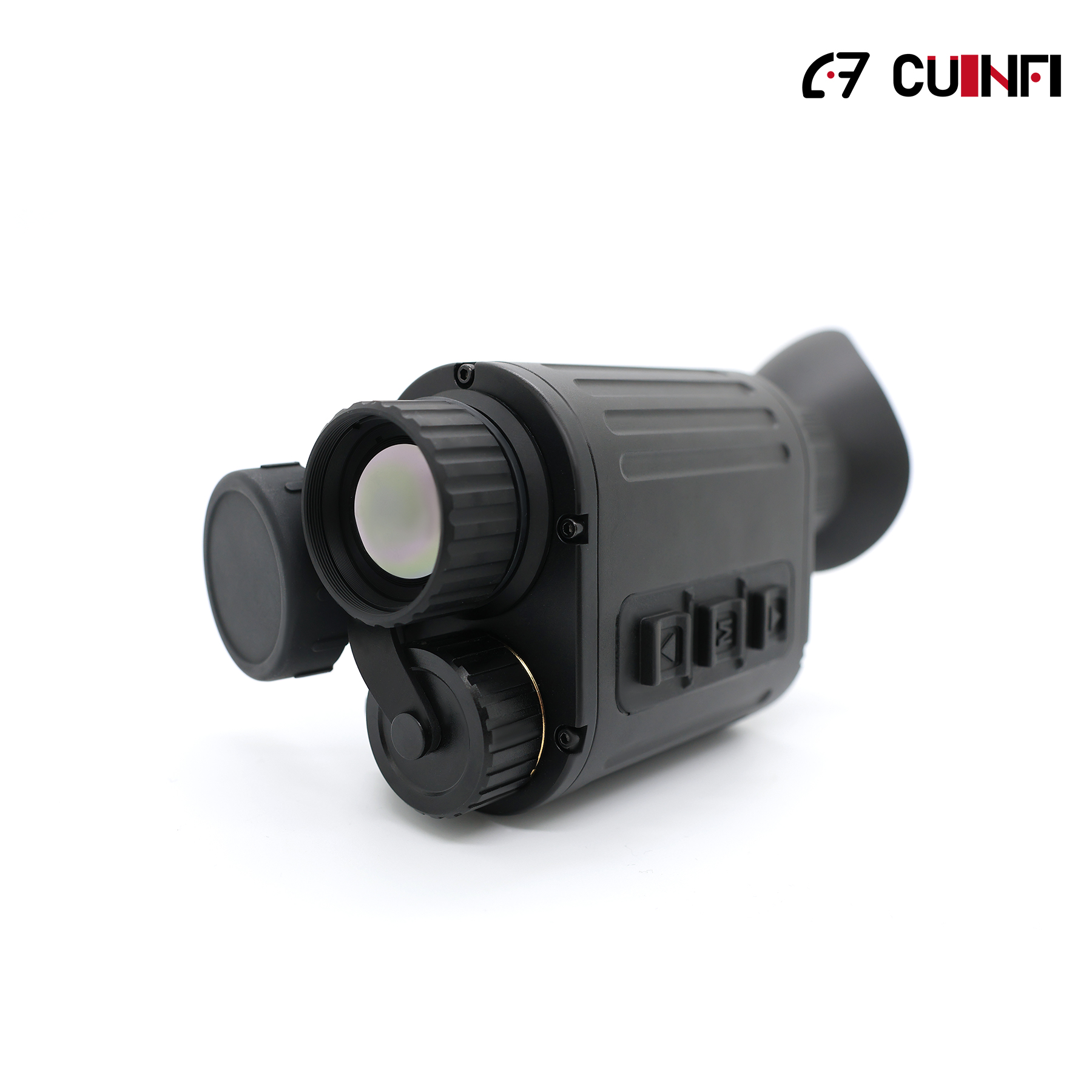

4-in-1 Series Thermal Imager

Name: 4-in-1 Series Thermal Imager
SKU: 179344886
Price: 2720 USD
Availability: InStock
Rating: 5.0 (22 reviews)

5 0 Reviews

The product provided with IP67 level waterproof performance,it is protected from heavy rainfall, snow.smoke, fog or dust.

Price: $ 2700 - 3400

Discount Price: $ 2160 - 2720

Product Description

Specification:

Model Number	625	319
Sensor Type	VOx Uncooled
Sensor Resolution	640x512	384x288
Pixel Pitch	12 um
NETD	≤20mk
Frame Frequency	50Hz
Display (OLED)	1024X768
Objective Lens	25mm
Angle of View	17.5°x14°	13.8°x10.4°
Electronic Zoom	1x-8x
Eye Pupil	20 mm
Diopter of Eyepiece	±4
Color Palette	White Hot/Black Hot/Iron bow/Glowbow/Sepia/Red Hot/Green Hot
WIFI	Support
Photo/Video	Support
Battery	1x18650 (3.7V)
Working time (WIFI OFF)	＞6h
Reticle type	7 types
Reticle color	White/Black/Green/Reverse
Detection Range (1.7mx0.5m)	1200m	1000m
Weight (Without battery)	＜335g	＜325g
Dimension	112x68x55mm	108x68x55mm
Protection	IP67
Working temperature	-20℃ to +50℃
Shock Resistance	1000G with anti-shocking mounting
